CHANGING THE DIMENSIONS OF A PRE-MADE TEMPLATE

This option is best when

• The make and model of your vehicle is available as a pre-made template and needs only minor adjustments to the cargo length, height or width

• Your vehicle is based on a similar chassis/frame of an available pre-made template and needs only minor adjustments to the cargo length, height or width


STEP BY STEP

CALCULATIONS

STEP BY STEP

To use this feature, you will need to know the original dimensions of the chosen template, as well as the desired new dimensions.  READ 👉️ Pre-made Templates and their Dimensions

Once you have selected your chosen template within the software, it will load in the design area

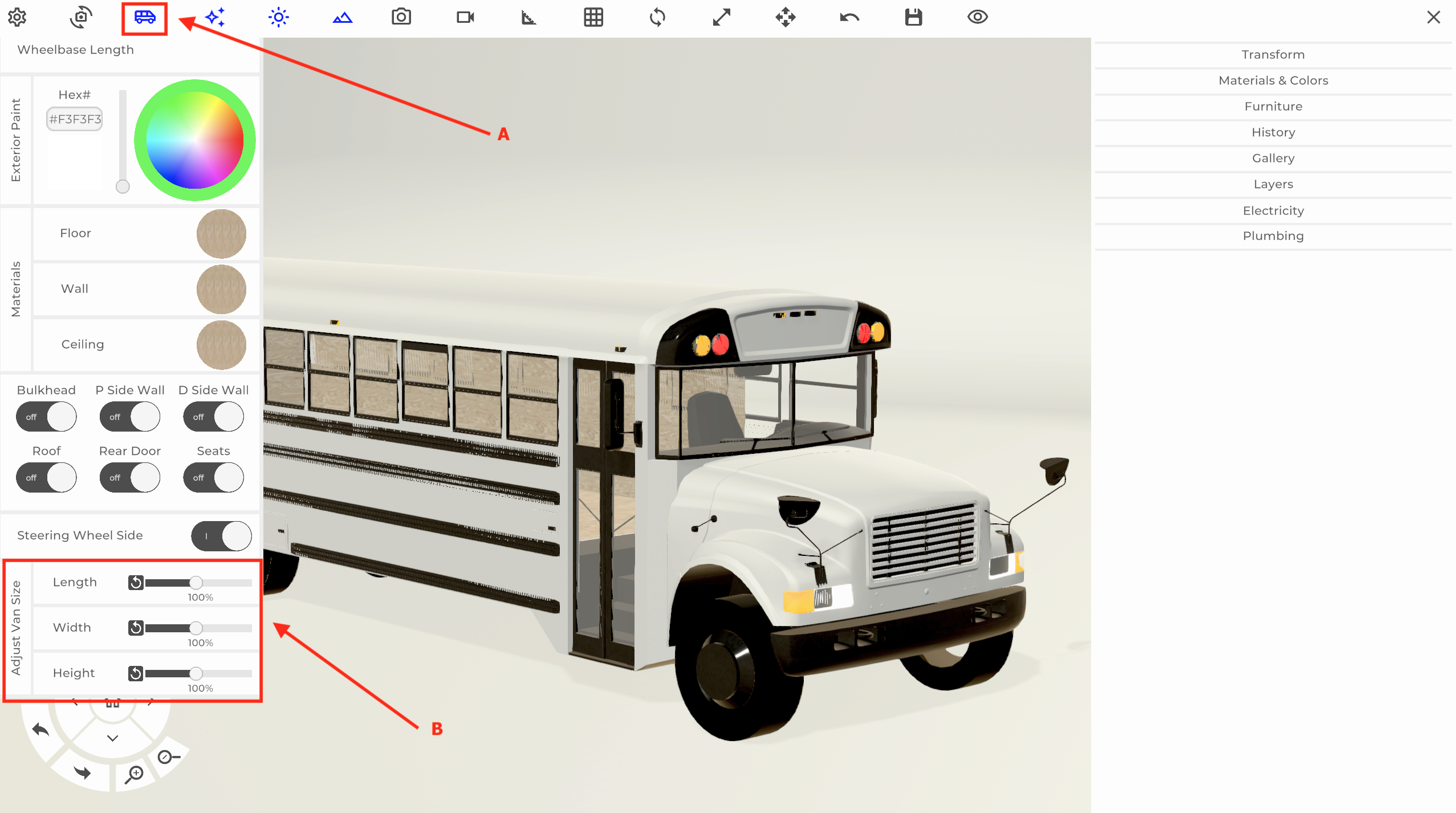

1) Select VAN SETTINGS from the toolbar so that the menu expands

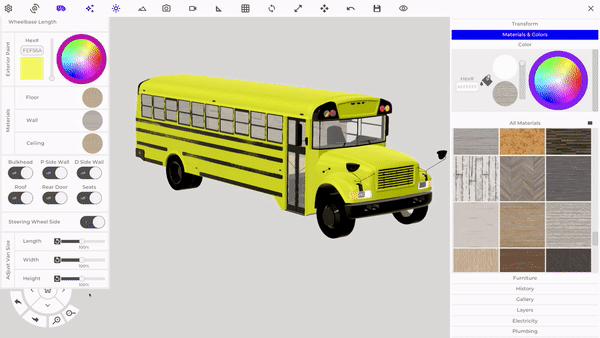

2) Adjust the van size using the Dimension Sliders, moving left or right to increase or decrease.

CALCULATIONS

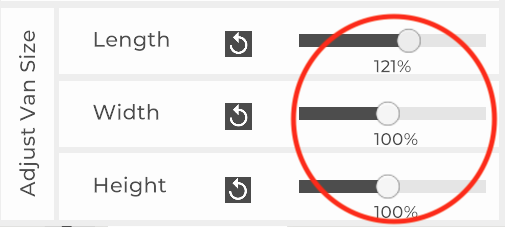

You will notice that the dimension sliders allow you to increase or decrease the size of your model in percentages.

For our example, we want to increase the length from 182 to 207cm

If we wanted to adjust the template to be smaller, it would by the same calculation as above, only decreasing by the percentage amount using the slider.

Repeat for each dimension needed, length, width and height.
