RESIZE AND ROTATE OBJECTS MANUALLY

• Input accurate object dimensions manually for height, width and length
• Input degrees of rotation accurately on the X, Y and Z axis
• Match dimensions and rotations from one object to another
• Choose between Metric or Imperial measurements

INPUT RESIZE/SCALE MANUALLY

INPUT ROTATION MANUALLY

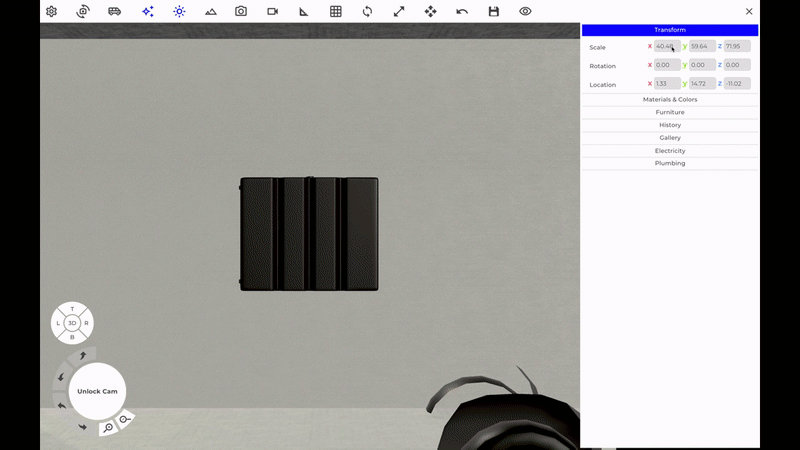

WATCH 👁  INPUTTING MANUALLY

TAKE A LOOK 👁  AT MANUAL RESIZE AND ROTATE

INPUT RESIZE/SCALE MANUALLY

STEP BY STEP

1️⃣  Highlight your chosen object so that the Gizmo appears; note the colour-coded arrows of the Gizmo that represent which axis is W, H and L. This will be dependent on your viewing position.

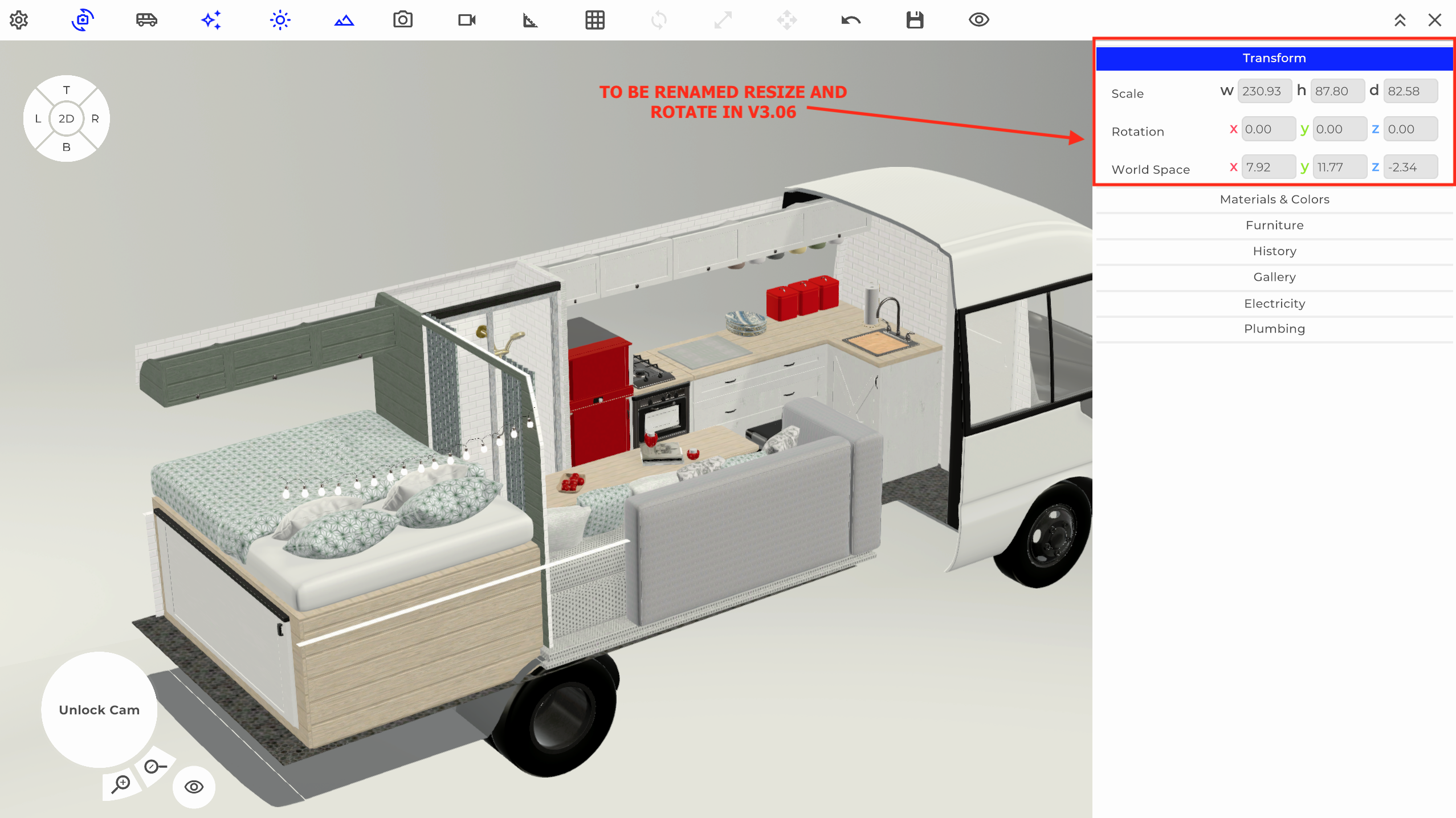

2️⃣  Open TRANSFORM from the SIDEBAR (to be renamed as Resize and Rotate in v3.06)

3️⃣  Input your chosen dimensions into the SCALE/ RESIXE fields W,  H and L, according to step 1 above

👉️ HIT ENTER TO APPLY THE CHANGE BEFORE MOVING TO THE NEXT INPUT BOX

RELATED GUIDES

Selecting Metric or Imperial Measurements

INPUT ROTATION MANUALLY

STEP BY STEP

1️⃣  Highlight your chosen object so that the Gizmo appears; note the colour-coded circles of the Gizmo that represent which axis is X, Y and Z. This will depend on your viewing position.

2️⃣  Open TRANSFORM from the SIDEBAR (to be renamed as Resize and Rotate in v3.06)

3️⃣  Input your chosen dimensions into the ROTATE fields according to step 1 above

Good for

Duplicating the rotation of another placed item

Entering a known rotation

Not good for

Freehand rotation
When the needed rotation is not known

WATCH 👁  INPUTTING MANUALLY

WORLD VIEW

This function for accurate alignment is covered within the guide Using World Space for accurate alignment of objects

RELATED GUIDES
Overview of object movement, scaling and rotating functions
