LOCATING, DOWNLOADING AND SHARING DESIGNS ON WINDOWS.

All vanspace 3D layouts are stored in a .vs3d format and can be found in a specific vanspace 3D folder on the system where they were created.

Once the vanspace 3D folder is located, you can select SCREENSHOTS to view all Gifs and Images created within the software or select the SAVES folder to locate all saved layouts.

In this dedicated vanspace 3D folder, you can 👇️

• Locate saved layout .vs3d files.
• Share layouts with other vanspace 3D users
• Drop in pre-made layout .vs3d files
• Locate in-software screenshots
• Locate GIFS created with the GIF MAKER

GUIDE INDEX

DIRECT PATH

LOCATING THE VANSPACE 3D FOLDER

• Is the Localow folder hidden?

SHARING LAYOUTS WITH ANOTHER VANSPACE 3D USER

• Sending User
• Receiving User

DROP IN A PRE-MADE LAYOUT

LOCATING GIFS AND SCREENSHOTS

DIRECT PATH

The direct paths are below; however, it is common for the LocaLow folder to be a hidden folder on your system. If this is the case, continue to follow the manual location steps in section LOCATING THE VANSPACE 3D FOLDER

Gifs and screenshots

username/AppData\LocalLow\vanspace 3D\vanspace 3D\Saves\Screenshots

Saved layouts

username/AppData\LocalLow\vanspace 3D\vanspace 3D\Saves

LOCATING THE VANSPACE 3D FOLDER

1. Windows Icon >  Run.

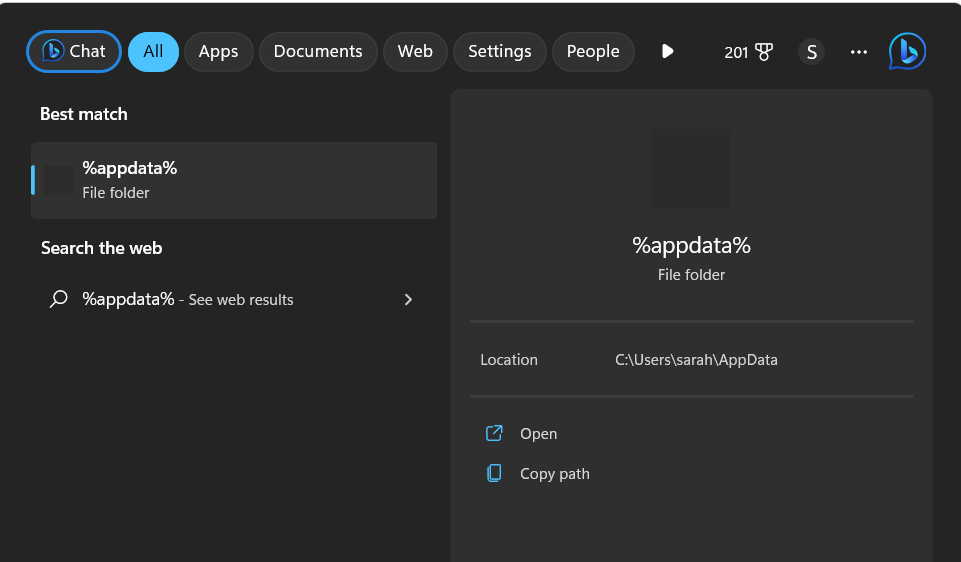

2a. Type  %appdata%

3.. Open the %appdata% File Folder

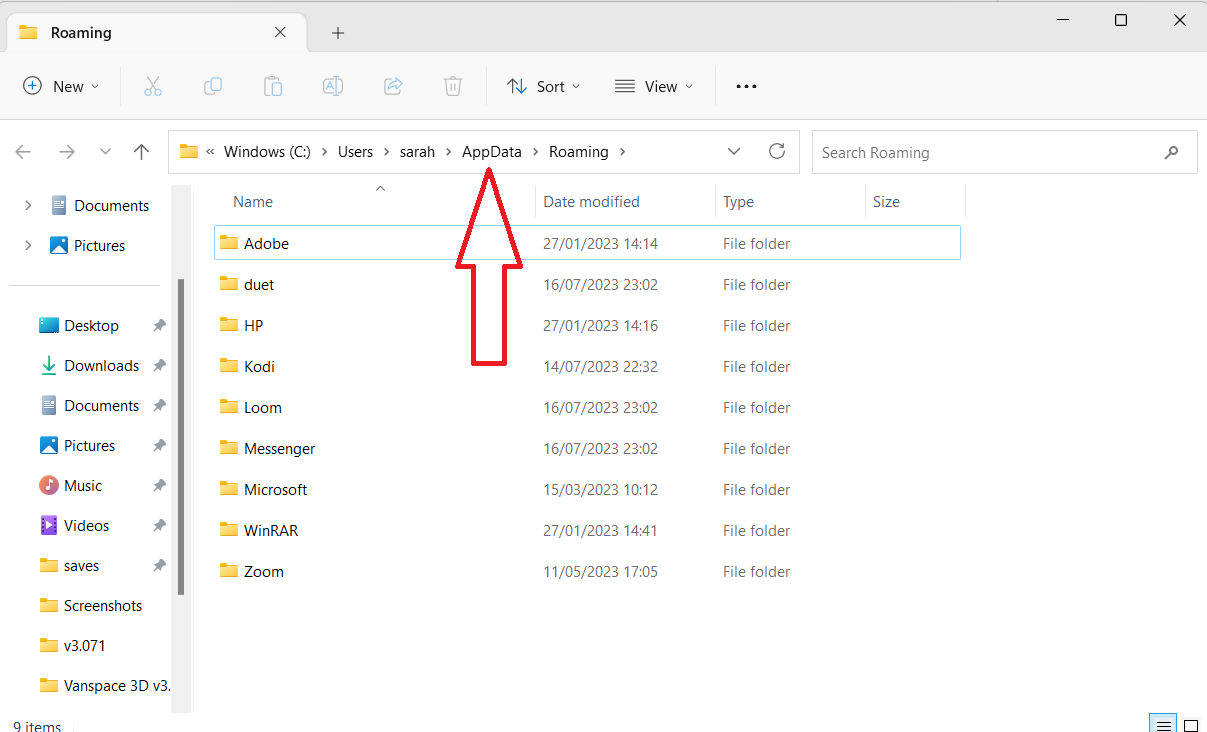

4. If the folder opens at ROAMING, the search has gone one step too far.
Select the file one step before named APPDATA.

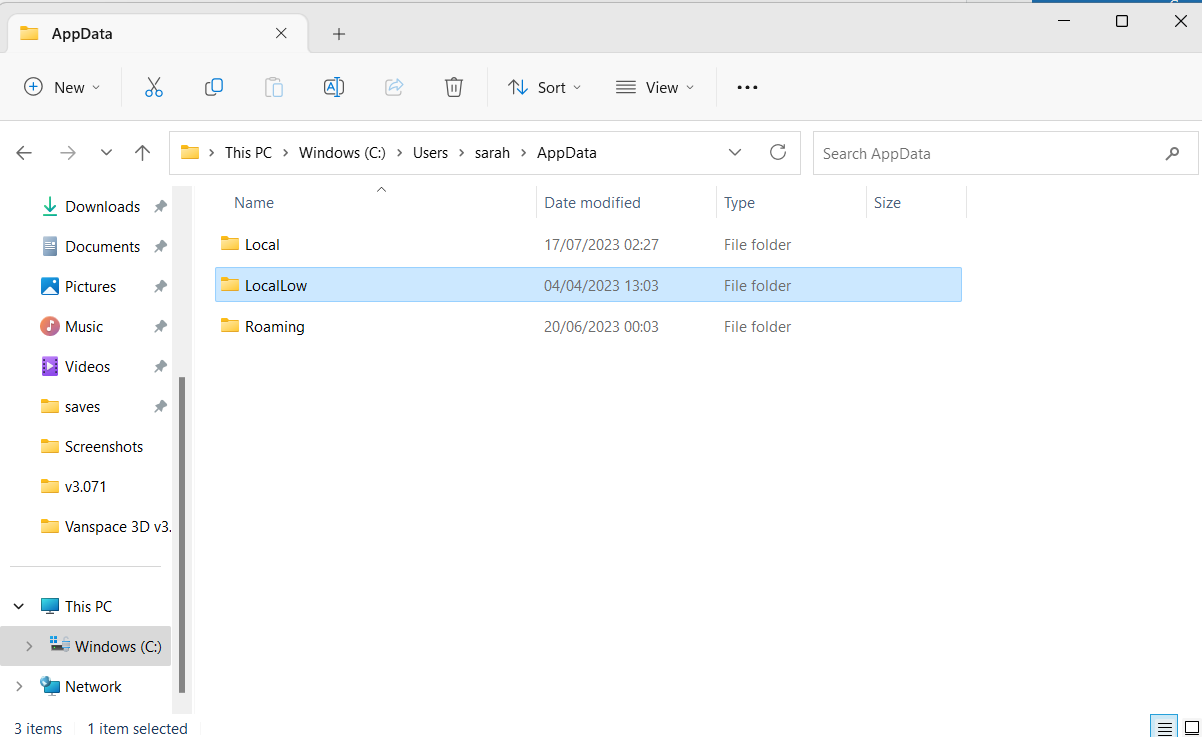

5. Select LocalLow

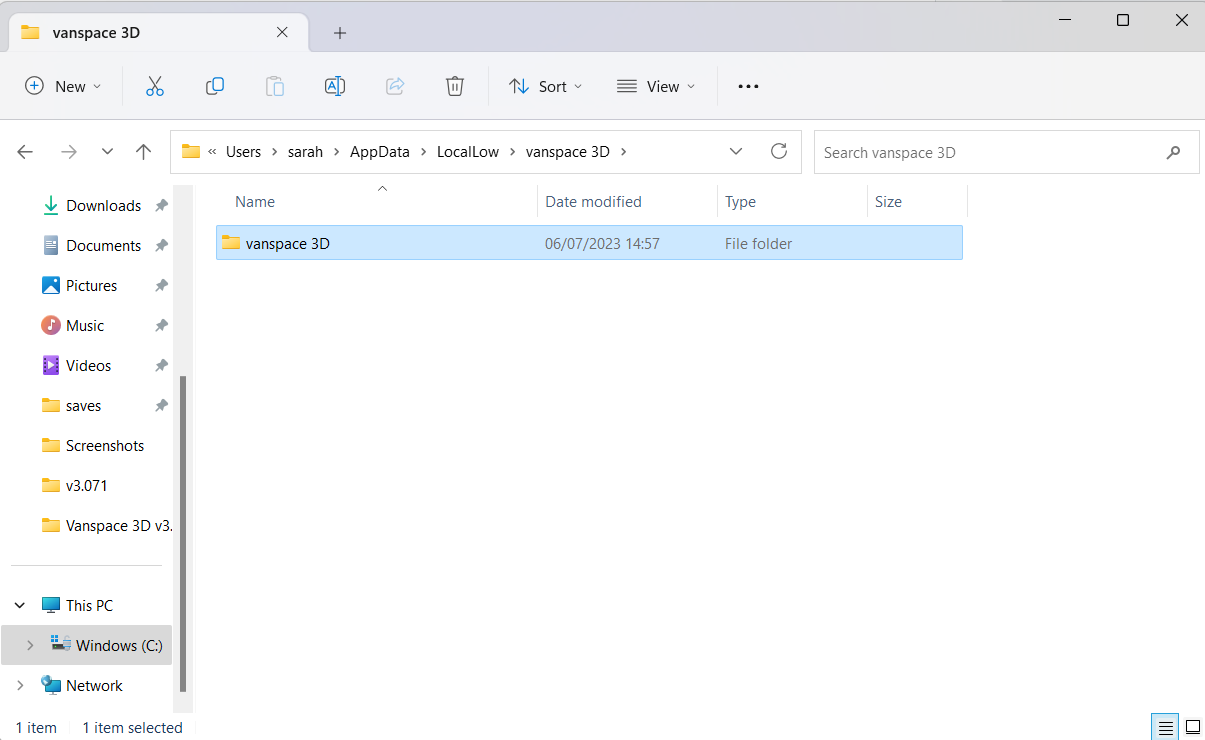

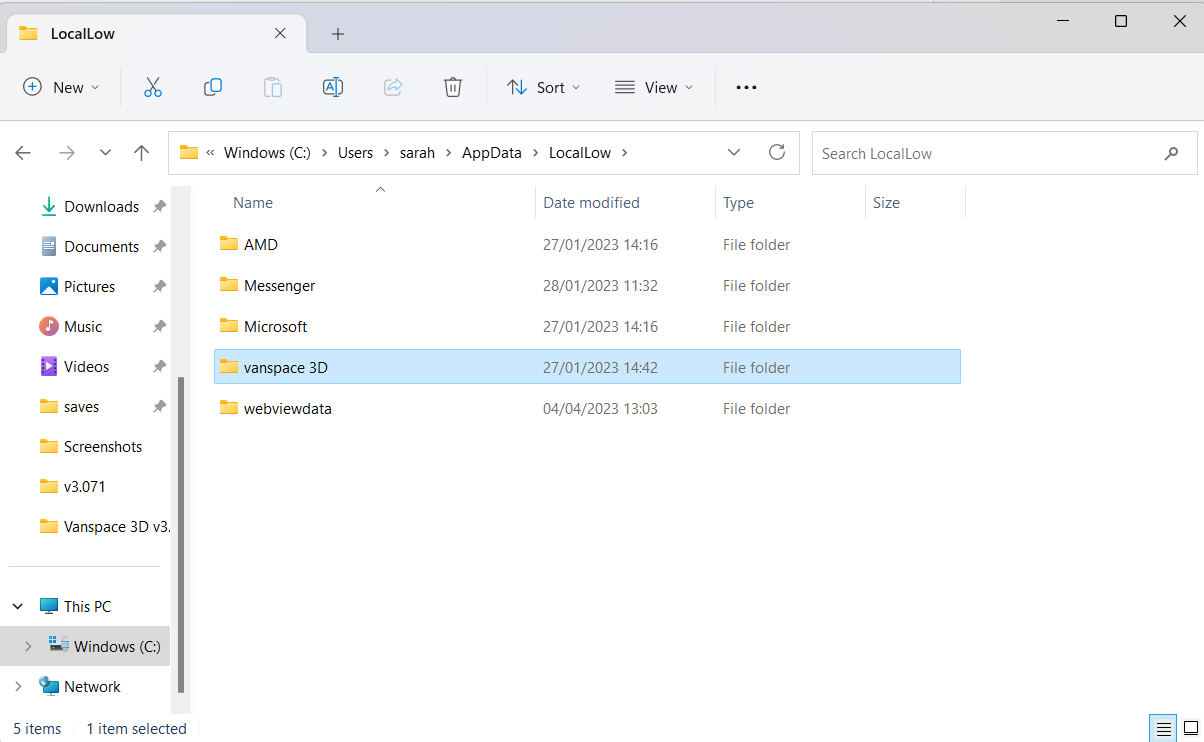

6 & 7. Select the VANSPACE 3D folder on both occasions.

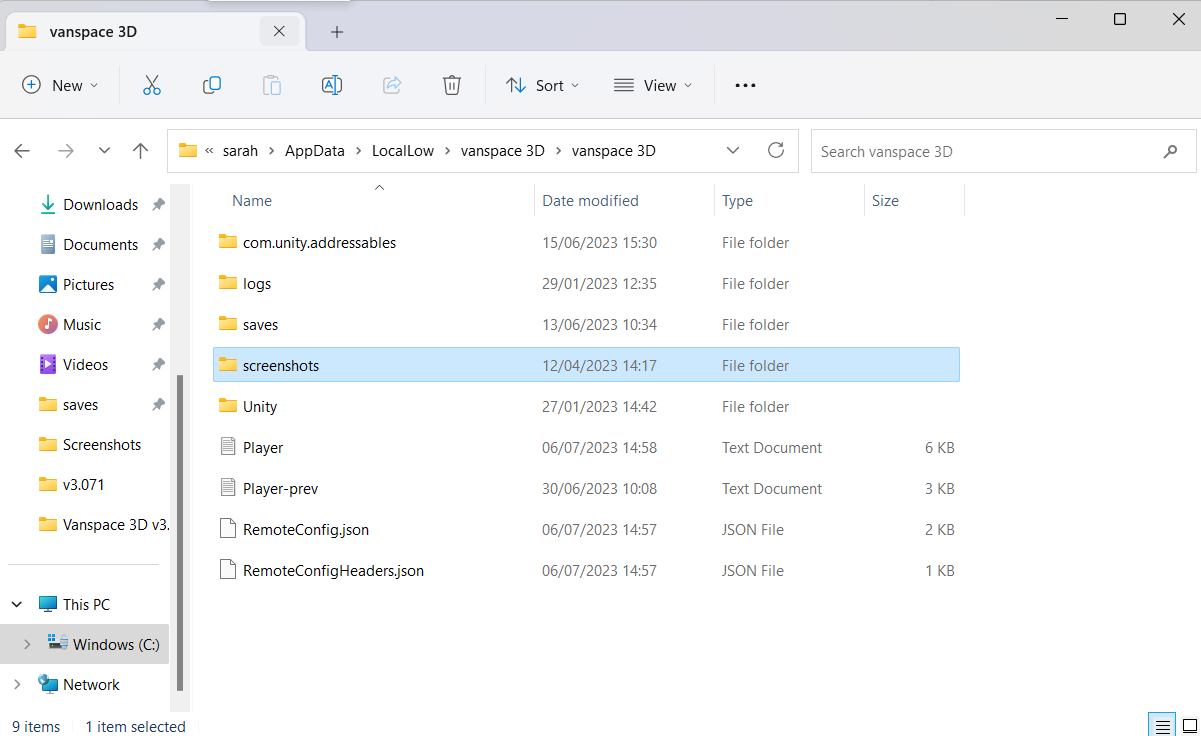

8. For Screenshots and GIFS, select the SCREENSHOTS folder. For saved layouts, select the SAVES folder

SHARING LAYOUTS WITH ANOTHER VANSPACE 3D USER

Provided the .vs3d files are placed in the correct location, and the receiving end has its own vanspace 3D software installed, users can share their designs with others.

The kind of template the design was created in is important as it determines if one or two data files need to be shared, you will notice the name used when saving will also appear on the data files.

Premade template - savedname.vs3d

Custom Template -  savedname.vs3d + savedname.PRESET.preset

Sending User

1. Locate the SAVES folder LOCATING THE SAVES FOLDER

2. Locate the relevant .vs3d file
3. If a custom template, also locate the same named file that is followed by Preset. preset

4. Attach to your chosen method of transfer, e.g. email etc. and send to the receiving user.

Receiving User

1. Download the received data file/s

2. Locate the SAVES folder on your system LOCATING THE SAVES FOLDER

3. Place the .vs3d file in this location

4. Also place the Preset.preset file in the same location if a custom template

5. Launch the software and open the layout Load your Saved Layout.

If the receiving user is using a Mac device 👉️ Locating, Downloading and Sharing designs on Mac

DROP IN A PRE-MADE LAYOUT

1. Once you have downloaded a pre-made layout available in the Inspiration tab of your online dashboard, it will be located within your downloads folder.

2. Drag and drop, or move the .vs3d file into the SAVES folder LOCATING THE VANSPACE 3D FOLDER

3. Launch the software and select the pre-made layout from the menu within the home screen.

How to use our ready-made layouts

LOCATING GIFS AND SCREENSHOTS

1. Once in the vanspace 3D folder in step 8 of LOCATING THE VANSPACE 3D FOLDER , select SCREENSHOTS

All in-software images are saved in .PNG format,
All GIFS are saved in .GIF format

Gif Maker, In-software Camera and Recording
