HOW TO USE OUR READY-MADE LAYOUTS

Of course, you can create your own detailed layouts, but sometimes it is very handy to use one we have already created for you.

The good news is that we provide a selection of ready-made layouts that can be downloaded and opened within your own installed vanspace 3D software.

Great for 👇️

• Are you new to our software? These are great for practising with
• Have you loved a layout that we have posted? No problem; we want you to have it
• Would you like to make some changes? Go ahead!
• Move, delete or add new objects to suit your own ideas
• Change the material and colour scheme
• Adjust the template dimensions to suit your own model

GUIDE INDEX

VIEW AND DOWNLOAD YOUR CHOSEN LAYOUT

PLACING IN THE CORRECT LOCATION

VIEW AND DOWNLOAD YOUR CHOSEN LAYOUT

1. Load your online dashboard and log in at https://dashboard.vanspace3d.com/
2. Select the INSPIRATION tab on the left-hand side
3. Scroll through the layouts available; all are clearly labelled with information on the template used.

4.  Click the download option underneath your chosen layouts description to download the .vs3d file

WATCH 👁  WHERE TO VIEW AND DOWNLOAD OUR PRE-MADE LAYOUTS

PLACING IN THE CORRECT LOCATION

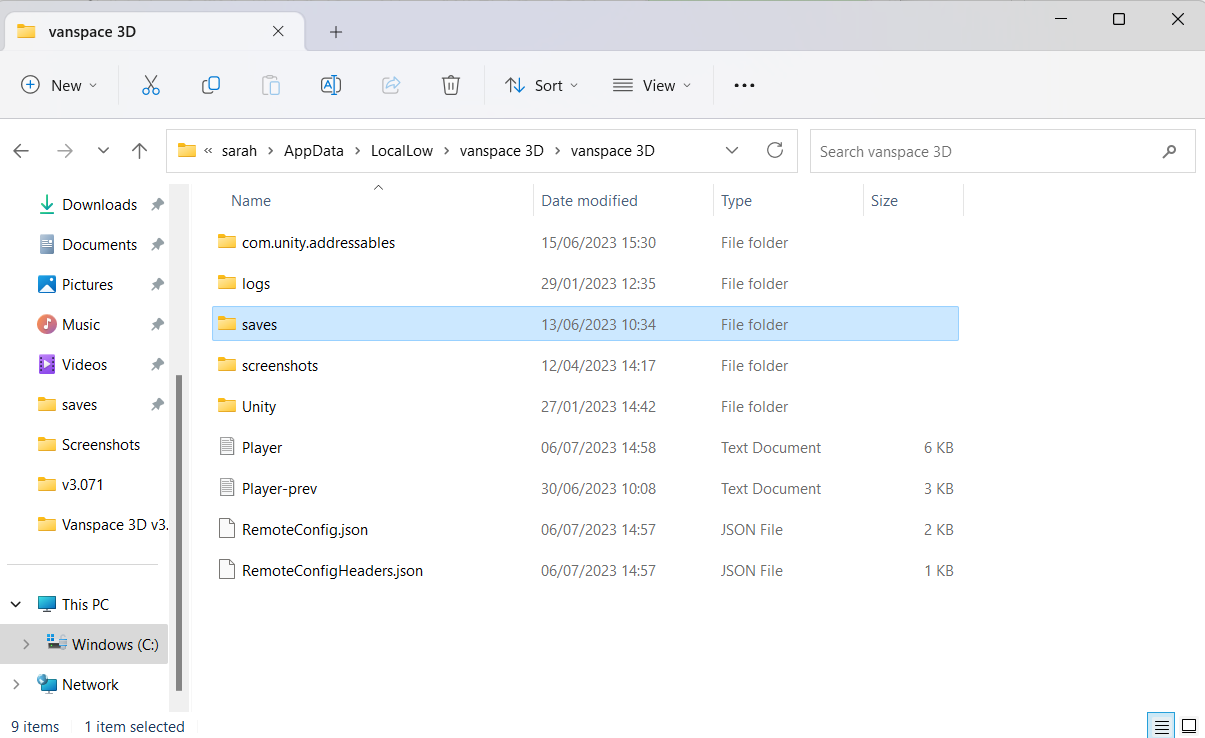

Any layouts downloaded from the INSPIRATION tab of your online dashboard can only be opened within the software once placed in a specific vanspace 3D SAVES folder on your system.

5. Once downloaded, the .vs3d file will appear in your downloads folder, ready to be moved to your SAVES.

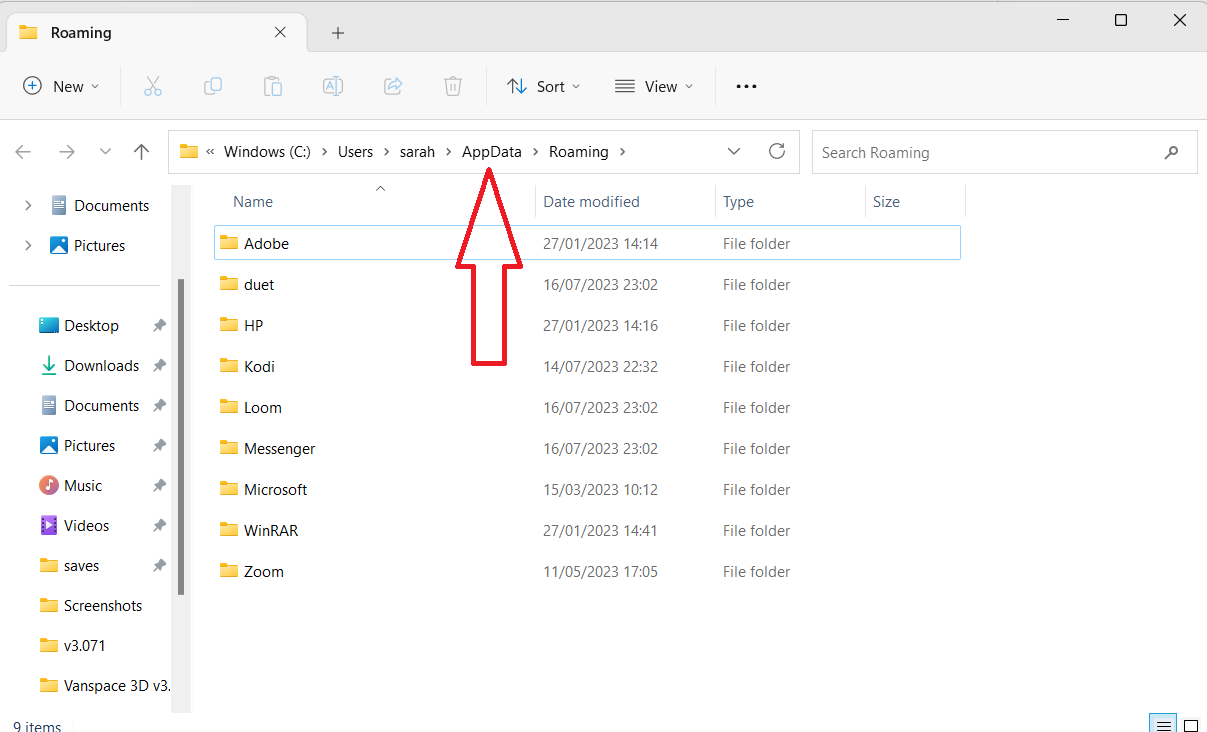

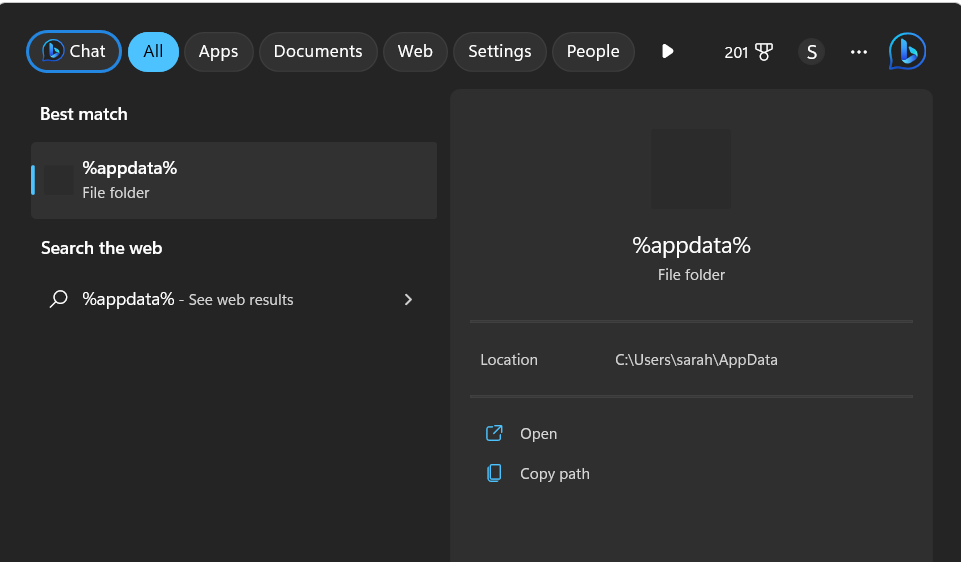

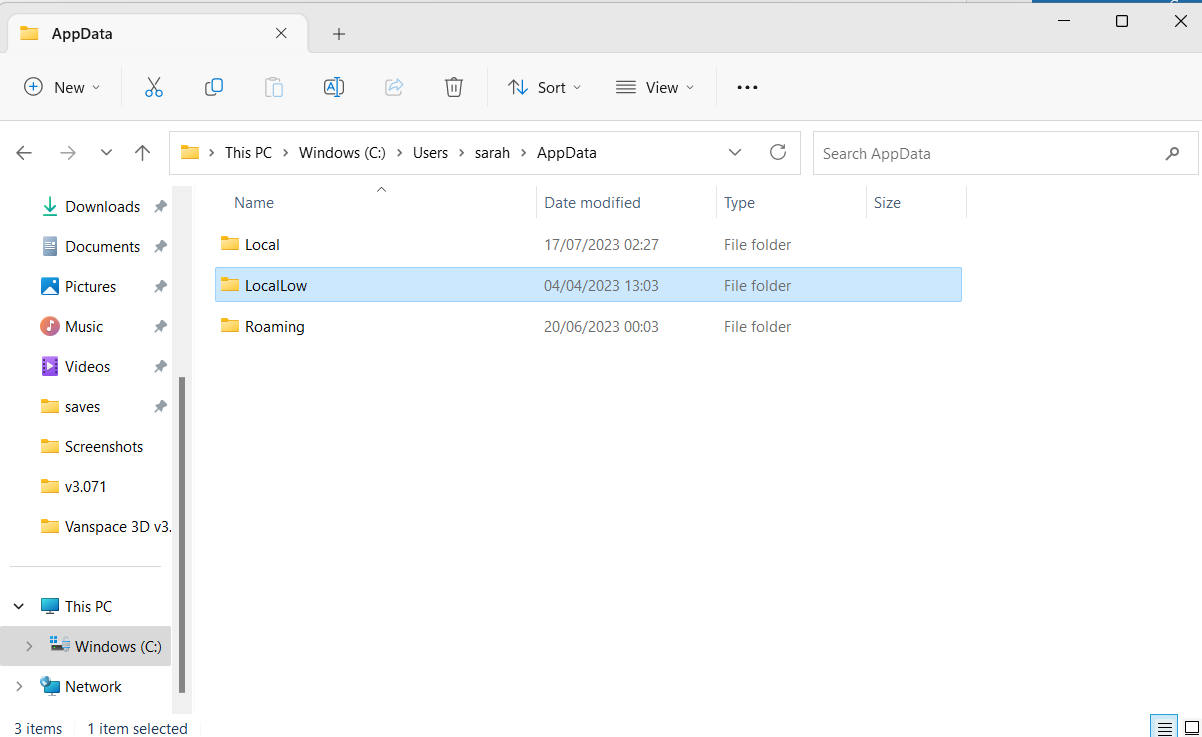

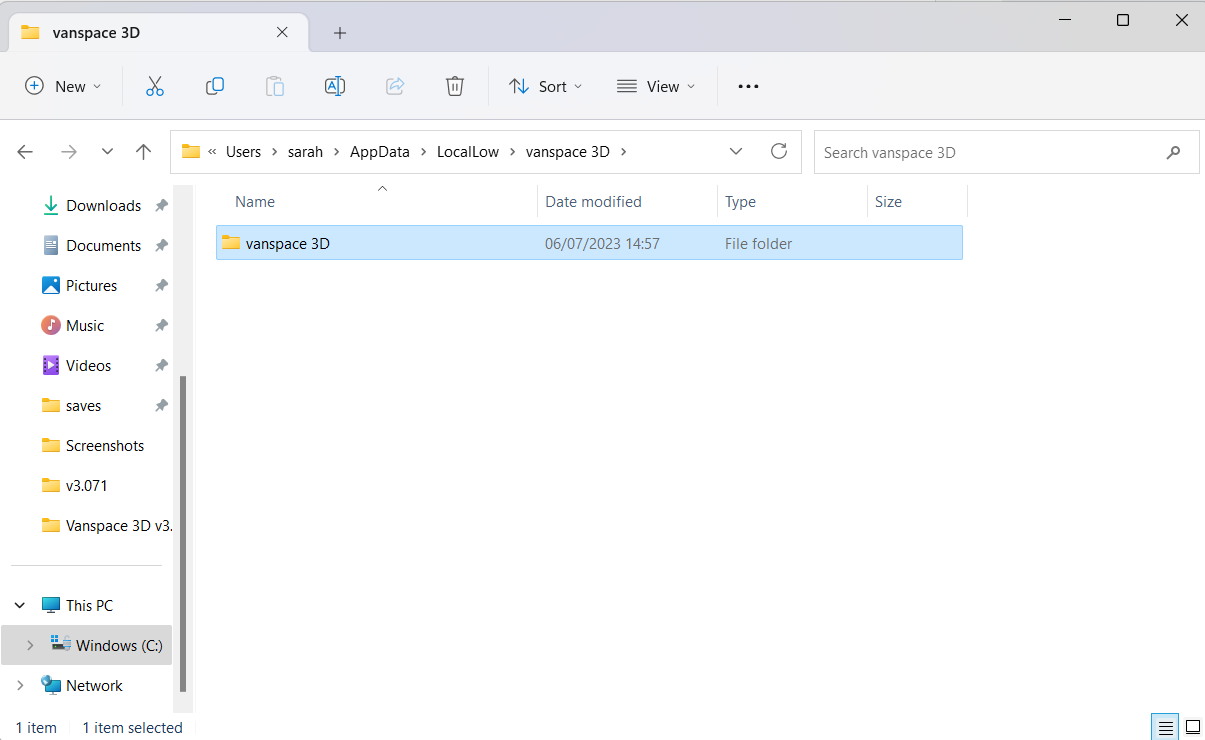

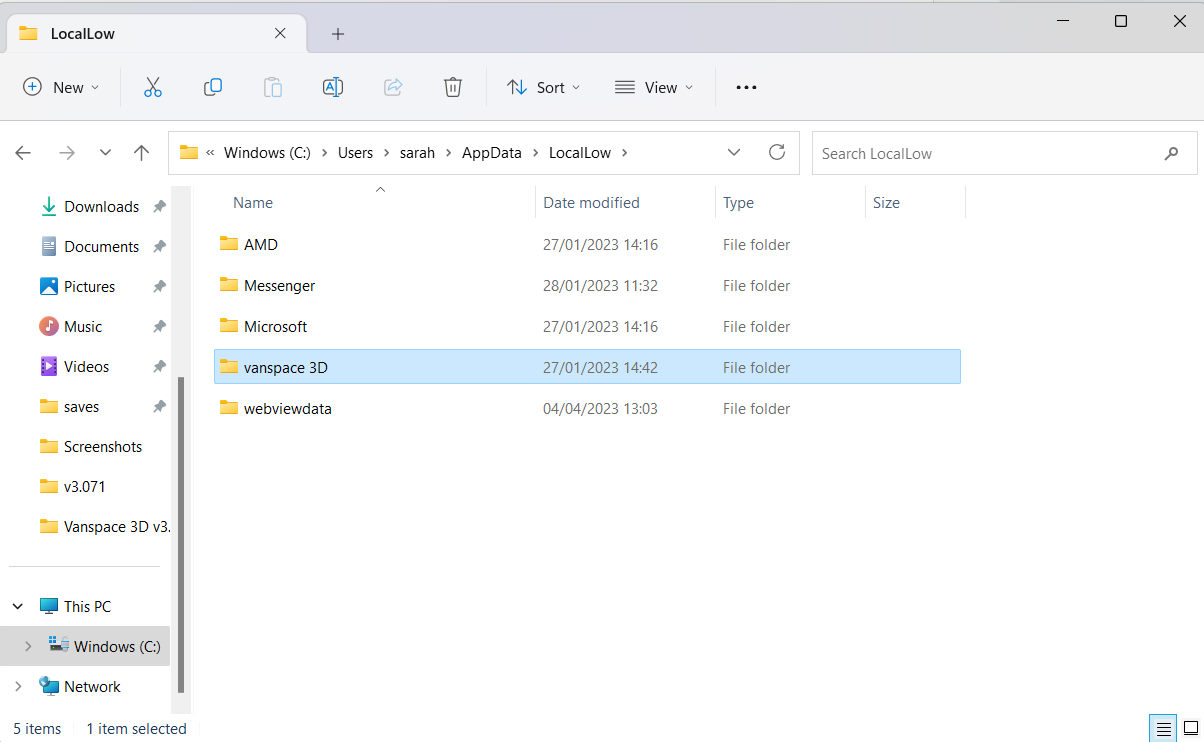

6. Use these guides to locate the vanspace 3D SAVES Folder 👇️

Locating, Downloading and Sharing designs on Windows

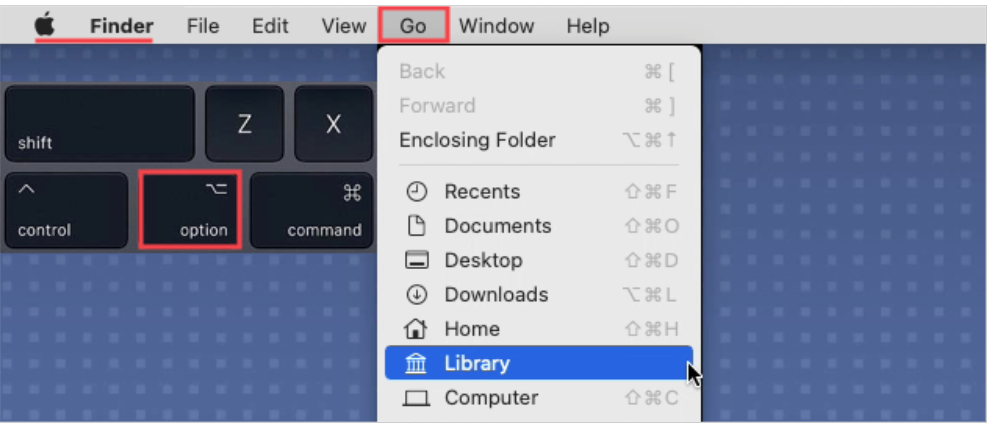

Locating, Downloading and Sharing designs on Mac

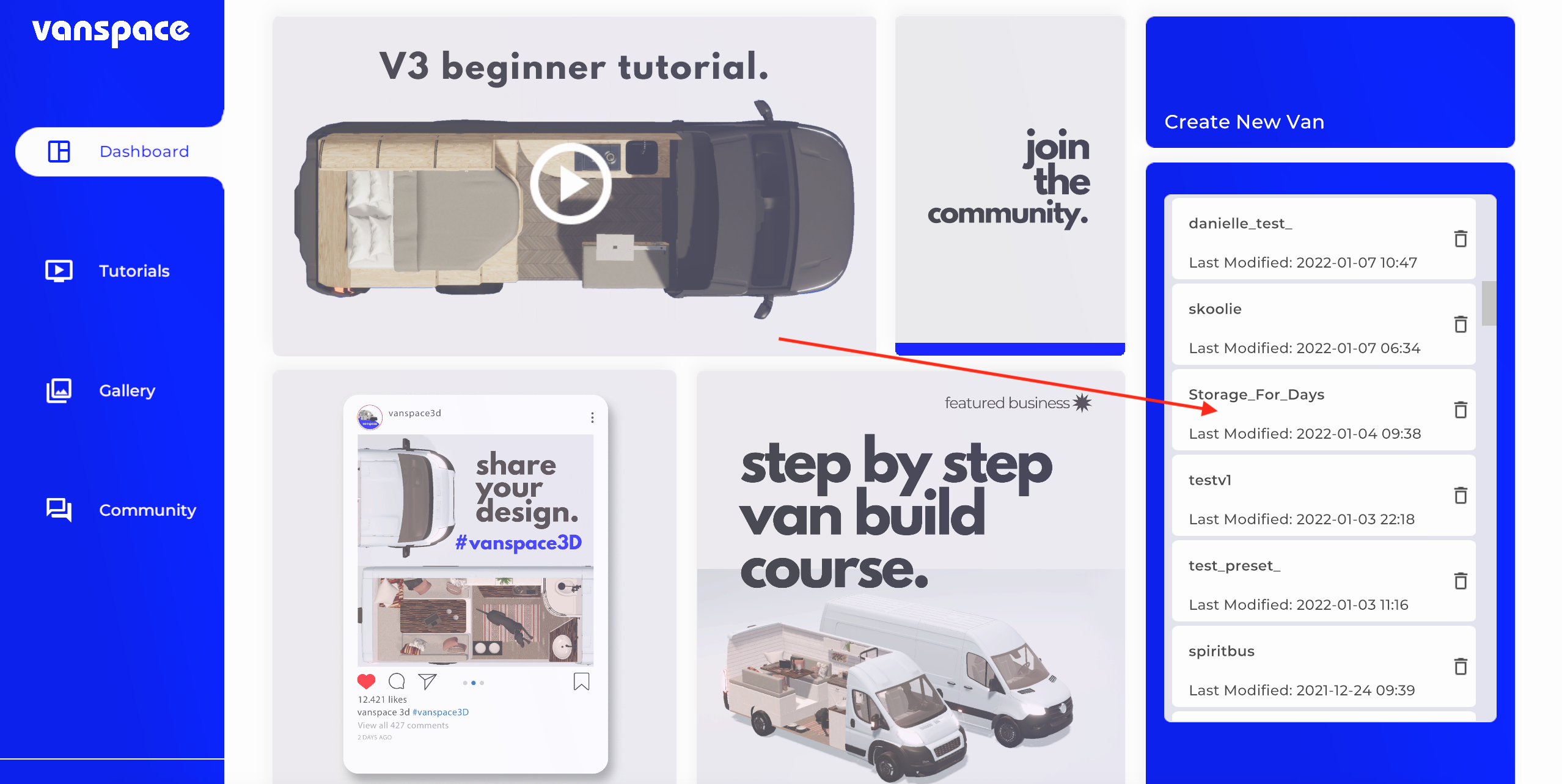

7. Once in the correct location, you can launch the software and select the design Load your Saved Layout.
